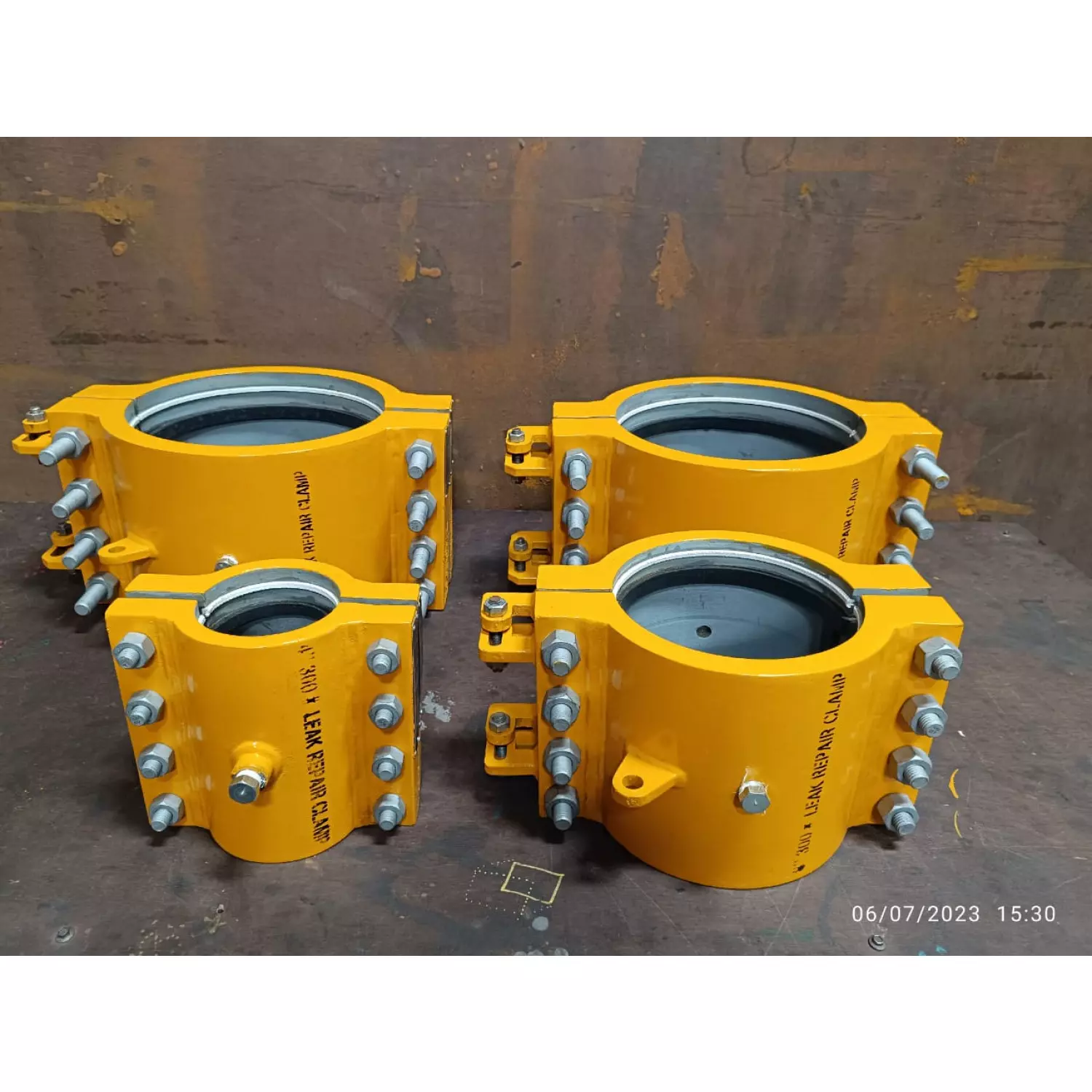

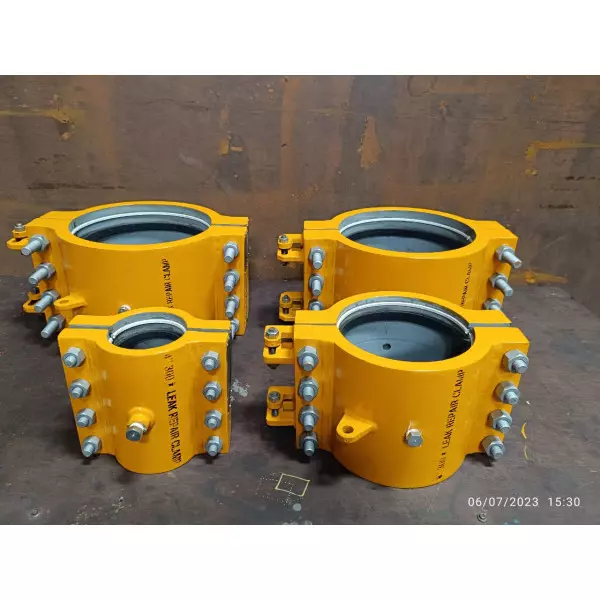

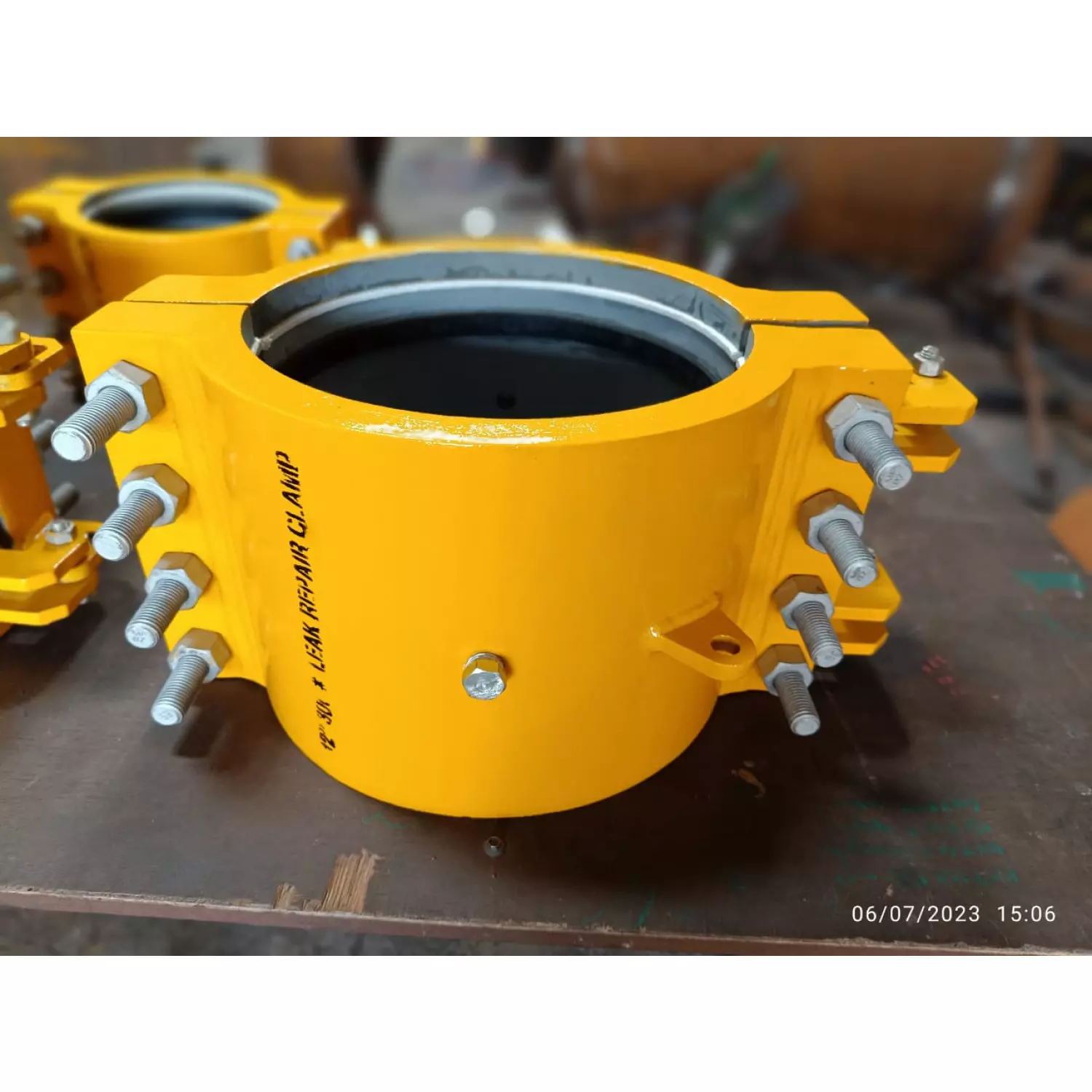

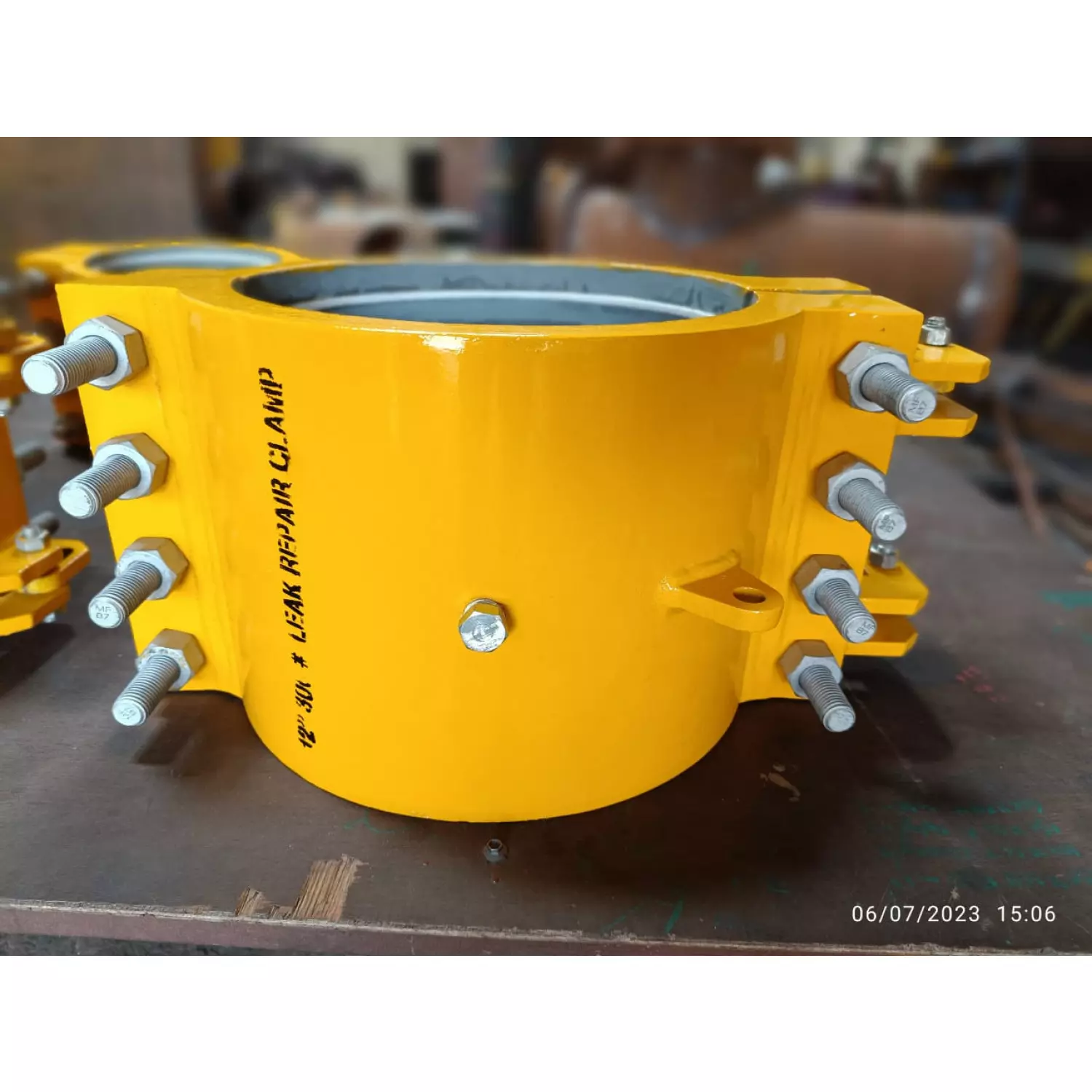

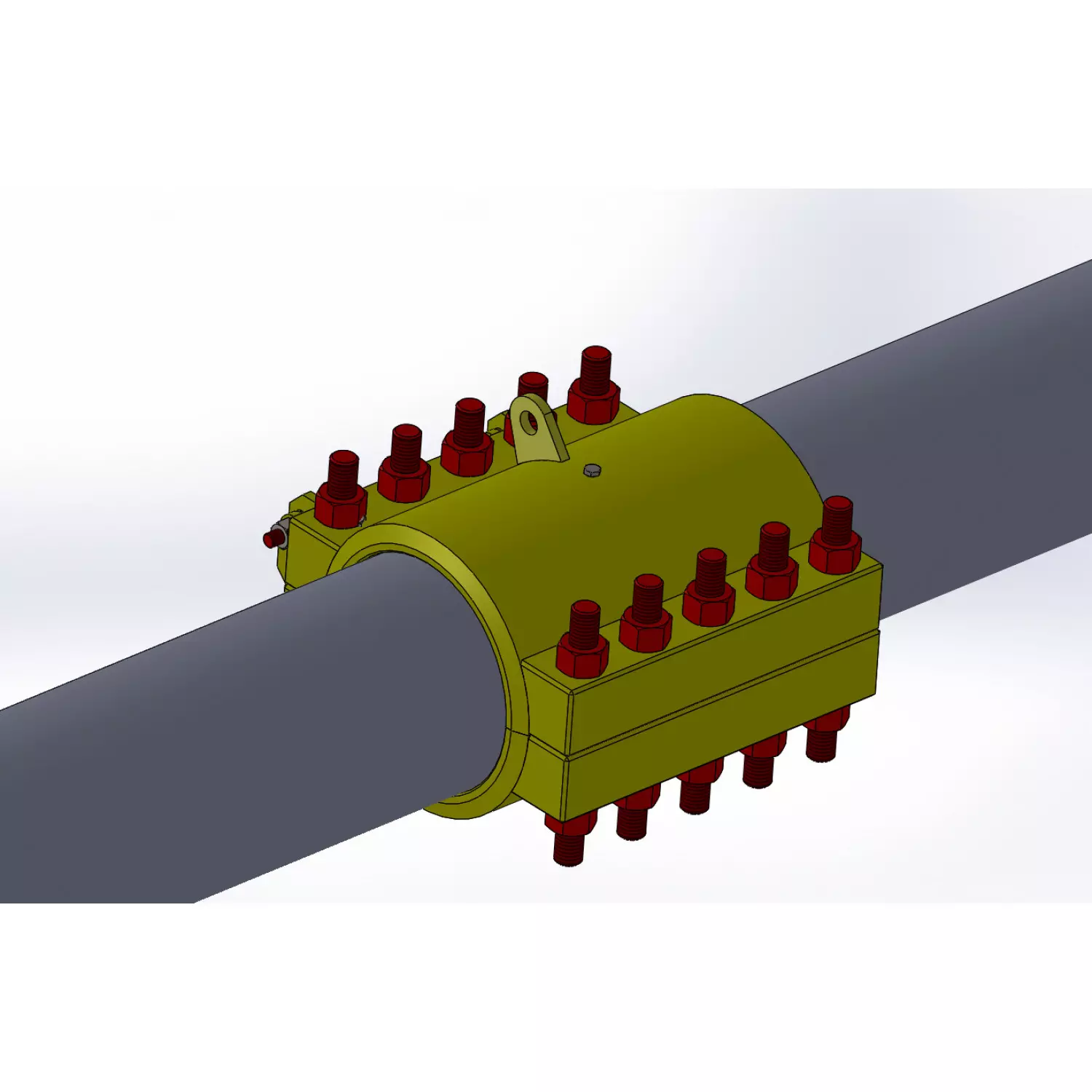

Pipe Line Repair Clamp

Size (Inch)

ANSI CLASS

Minimum

Maximum

Minimum

Maximum

1 Inch

8 Inch

150 #

2500 #

10 Inch

16 Inch

150 #

1500 #

18 Inch

48 Inch

150 #

900 #

STANDARD DIMENSION JACKWELL ENGINEERING LLP

PIPE SIZE

 (INCH)

CLAMP INSIDE SEALING LENGTH (INCH)

CLAMP OVERALL LENGTH

(INCH)

1

5.3

9.2

2

5.3

9.2

3

5.3

9.2

4

5.3

9.2

6

5.3

9.2

8

5.3

9.6

10

5.3

11

12

5.3

11

14

8

14

16

8

14

18

8

14

20

8

14

22

8

14

24

8

14

26

8

14

28

8

14

30

8

14

32

8

14

34

8

14

36

8

14

38

8

14

40

8

14

42

8

14

44

8

16

46

8

16

48

8

16
